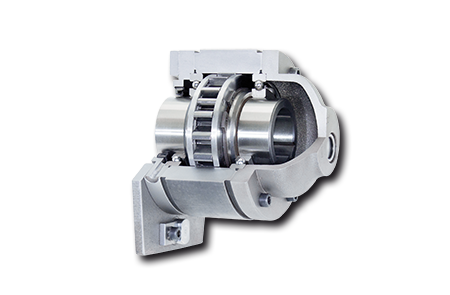

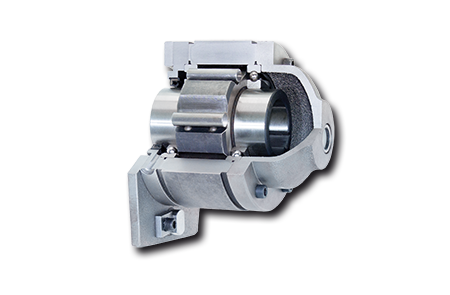

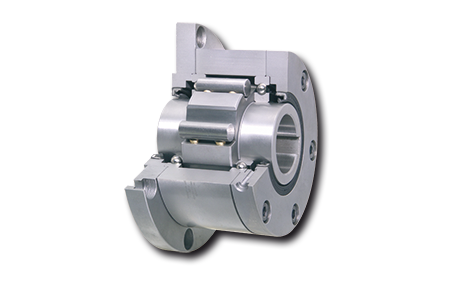

Complete Freewheels BA … X

  • Complete Freewheels BA … X BA-X Bild
  • with lever arm
    with sprag lift-off x

    Application as

    • Backstop


    Features
    Complete Freewheels BA … X with lever arm are sealed freewheels with ball bearings.
    The freewheels BA … X have an end cover and are fitted to shaft ends. The oil filling is carried out after the freewheel has been fitted to the end of the shaft.
    Besides the standard type, the type with sprag lift-off X is available for wearfree freewheeling operation at high speed rotating inner ring.
    Nominal torques up to 42 500 Nm.
    Bores up to 150 mm. A multitude of ­standard­ized bore diameters are available with short delivery times.
